Cbd Belapur, Navi Mumbai, Maharashtra
Godet Rolls
Leading Manufacturers, Exporters, Wholesaler of Cooled Godet Rolls, Externally-Driven Heated Godet Rolls, Heated Godet Rolls, High-Temperature Godet Rolls and Unheated Godet Rolls from Navi Mumbai.
MOQ : 100 Piece
| Business Type | Exporter, Supplier, Importer |
| Brand Name | Retech |
| Color | Silver |
| Temperature | 20 - 70 Degree C |
| Speed | Up to 4500 m/min |
| Roll Diameter | 127 - 220 mm |
| Roll Length | 150 - 550 mm |
| Cooling Power | 50 - 4000 W |
Preferred Buyer From
| Location | Worldwide |
Characteristics :
- Single-zone forced cooling (chilled water)
- Stationary (STS) or rotating (RTS) temperature transmission system
- PT100 temperature sensor
- Diverse surface materials available (chrome, ceramic or other)
- Diverse surface finishes available (for optimum frictional properties)
- Maintenance-free seal system
Advantages :
- Precise cooling
- Accurate and precise surface temperature profile (for consistent yarn quality)
- Robust, simple modular design with installation from the front
- Low maintenance
- All electrical connections with ‘plug-in’ facility
- No system balancing (roll exchange without rebalancing)
- No additional lubrication (lifetime bearings)
- Integrated cooling without additional cooling systems (water, oil mist, etc.)
- Low speed versions available (with gearbox, down to <5 m/min)
MOQ : 100 Piece
| Business Type | Exporter, Supplier, Importer |
| Brand Name | Retech |
| Country of Origin | India |
| temperatures | Up to 250 Degree C |
| Applications | Synthetic Filaments |
| Uses | Rotating Heated Draw Rolls |
| Grade Standard | Industrial |
Preferred Buyer From
| Location | Worldwide |

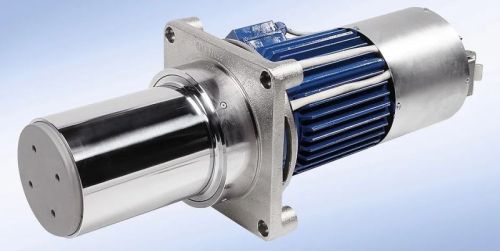

MOQ : 100 Piece
| Business Type | Exporter, Supplier, Importer |
| Brand Name | Retech |
| Frequency | 50/60 Hz |
| Speed | Up To 6500 M/min |
| Temperature | 60 - 250 Degree C |
| Roll Diameter | 100 - 250 mm |
| Roll Length | 100 - 450 mm |
| Supply Voltage | 230/400 V |
| Installed Power | 300 - 24000 W |
Preferred Buyer From
| Location | Worldwide |
Characteristics :
- Single- or multi-zone (3 or 4) induction heated
- Stationary (STS) or rotating (RTS) temperature transmission system
- PT100 temperature sensor with monitoring sensor for over-temperature protection
- Diverse surface materials available (chrome, ceramic or other)
- Diverse surface finishes available (for optimum frictional properties)
- Retech ’Thermoblocker’ (bearings outside the hot part of the roll)
Advantages :
- Accurate and precise surface temperature profile (for consistent yarn quality)
- Robust, simple modular design with installation from the front
- Low maintenance
- All electrical connections with ‘plug-in’ facility
- No system balancing (roll exchange without rebalancing)
- No additional lubrication (lifetime bearings)
- Integrated cooling without additional cooling systems (water, oil mist, etc.)
- Supervision of temperatures to protect damage (IoT)
MOQ : 100 Piece
| Business Type | Exporter, Supplier, Importer |
| Brand Name | Retech |
| Frequency | 50/60 Hz |
| Speed | Up To 3000 M/min |
| Temperature | 60 - 400 Degree C |
| Roll Diameter | 220 - 400 mm |
| Roll Length | 250 - 550 mm |
| Supply Voltage | 230/400 V |
| Installed Power | Up to 24000 W |
Preferred Buyer From
| Location | Worldwide |
Characteristics :
- Multi-zone (3 or 4) induction heated
- Rotating (RTS) temperature transmission system
- PT100 temperature sensor with monitoring sensor for over-temperature protection
- Diverse surface materials available (chrome, ceramic or other)
- Diverse surface finishes available (for optimum frictional properties)
- Retech ’Thermoblocker’ (bearings outside the hot part of the roll)
- Special cooling systems for bearings and induction heater
Advantages :
- Accurate and precise surface temperature profile (for consistent yarn quality)
- Robust, simple modular design with installation from the front
- Low maintenance
- All electrical connections with ’plug-in’ facility
- No system balancing (roll exchange without rebalancing)
- No additional lubrication (lifetime bearings)
- Integrated cooling without additional cooling systems (water, oil mist, etc.)
- Supervision of temperatures to protect damage (IoT)

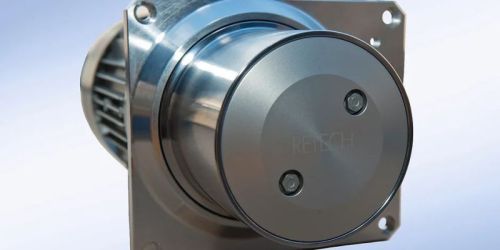

MOQ : 100 Piece
| Business Type | Exporter, Supplier, Importer |
| Brand Name | Retech |
| Frequency | 50/60 Hz |
| Speed | Up To 6500 M/min |
| Roll Diameter | 100 - 220 mm |
| Roll Length | 100 - 650 mm |
| Supply Voltage | 230/400 V |
Preferred Buyer From
| Location | Worldwide |
Characteristics
- Ambient tempered roll surface
- Diverse surface materials available (chrome, ceramic or other)
- Diverse surface finishes available (for optimum frictional properties)
Advantages
- High speed range
- Robust, simple modular design with installation from the front
- Low maintenance
- All electrical connections with ’plug-in’ facility
- No system balancing (roll exchange without rebalancing)
- No additional lubrication (lifetime bearings)
- Integrated cooling without additional cooling systems (water, oil mist, etc.)
